Azure IoT Hub

Send telemetry from Iotistica Agent endpoints directly to Azure IoT Hub using MQTT over TLS. Authentication uses Azure's SAS token mechanism — no certificates required on the agent side.

How It Works​

Agent endpoints (Modbus, OPC-UA, …)
         │
         ▼
   Subscription (agent)
         │  routes data to destination
         ▼
  Azure Destination (agent)
         │  MQTT over TLS :8883
         │  SAS token auth
         ▼
  Azure IoT Hub
         │
         ▼
  Message Routing → Azure Stream Analytics / Storage / Event Grid

The agent generates a SAS (Shared Access Signature) token from the device's SharedAccessKey and connects via standard MQTT. Tokens are automatically renewed before expiry — the agent reconnects silently at 80 % of the token's TTL without dropping any messages.

Step 1 — Create an IoT Hub​

  1. In the Azure Portal, search for IoT Hub and click Create.
  2. Choose a resource group, region, and hub name.
  3. Select the Free tier for development (8,000 messages/day) or the appropriate paid tier for production.
  4. Click Review + Create → Create.

Step 2 — Register a Device​

  1. Open your IoT Hub → Devices (left sidebar) → Add Device.
  2. Enter a Device ID — use something meaningful like factory-floor-1 or the agent's UUID.
  3. Leave Authentication type as Symmetric key and Auto-generate keys checked.
  4. Click Save.
  5. Click the device row to open it.
  6. Copy the Primary Connection String — it looks like:
HostName=myhub.azure-devices.net;DeviceId=factory-floor-1;SharedAccessKey=ABC123...==

Keep this string safe — it is the only credential you'll need on the agent side.

Step 3 — Add the Destination in the Agent​

  1. In the agent admin UI, go to Destinations → New Destination.
  2. Select type Azure IoT Hub.
  3. Fill in the fields:

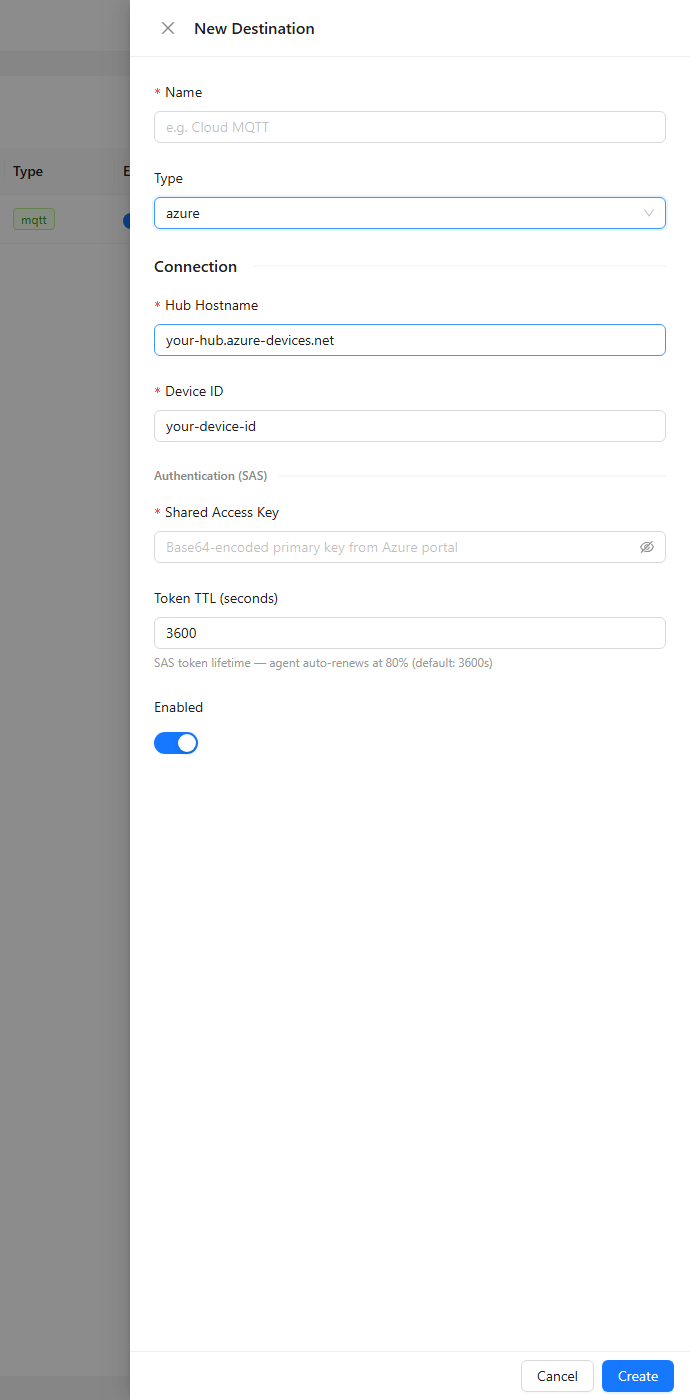

Azure IoT Hub destination form showing Hub Hostname, Device ID, Shared Access Key, and Token TTL fields

FieldValue
Hub HostnameFrom the connection string: HostName= value (e.g. myhub.azure-devices.net)
Device IDFrom the connection string: DeviceId= value
Shared Access KeyFrom the connection string: SharedAccessKey= value (Base64)
Token TTL (seconds)How long each SAS token is valid — default 3600 s (1 hour)
  1. Click Save.
Connection string fieldUsed as
HostNameMQTT broker host (port 8883, TLS)
DeviceIdMQTT client ID
SharedAccessKeySigns the SAS token password

Step 4 — Subscribe Endpoint Data​

  1. Go to Subscriptions → New Subscription.
  2. Select the destination you just created.
  3. Choose one or more endpoint topics to route (e.g. modbus/+/readings).
  4. Set the payload format — Tags is recommended for IoT Hub (produces flat JSON with field name as key).
  5. Click Save and enable the subscription.

Data will start arriving at IoT Hub within the next poll cycle.

Viewing Data in Azure​

To verify data is arriving:

  1. IoT Hub → Overview → check the Messages received metric.
  2. Use the Azure IoT Explorer desktop app to monitor live telemetry from the device.
  3. Or from the Azure CLI:
    az iot hub monitor-events --hub-name myhub --device-id factory-floor-1

Message Routing​

Azure IoT Hub can route incoming messages to other services:

TargetUse case
Azure Stream AnalyticsReal-time transformation and alerting
Azure Blob StorageRaw telemetry archiving
Azure Event HubsFan-out to downstream consumers
Azure Service BusQueue-based processing

Configure routes in IoT Hub → Message routing → Add a route.

The agent adds these MQTT user properties to each message, which can be used in IoT Hub routing queries:

PropertyValue
$.ctapplication/json
$.ceutf-8
endpointThe source endpoint name from the agent

SAS Token Renewal​

SAS tokens expire after a configurable TTL (default: 1 hour). The agent handles renewal automatically:

  • At 80 % of TTL the agent disconnects and reconnects with a fresh token.
  • No messages are lost — the offline buffer absorbs any brief outage during reconnect.
  • The TTL can be increased via the AZURE_SAS_TOKEN_TTL_SECONDS environment variable on the agent (e.g. 86400 for 24 hours).

Troubleshooting​

SymptomLikely cause
Destination shows connection errorWrong connection string — check HostName, DeviceId, SharedAccessKey
401 UnauthorizedSAS token clock skew — ensure agent system clock is accurate (NTP)
Messages not arriving in HubCheck IoT Hub quota; Free tier caps at 8,000 msg/day
Device shows as disconnected in PortalDevice was registered but never connected; enable the destination and subscription
