Destinations

A destination is a named connection to a service where the agent sends data. You configure it once and then wire it to endpoint data through subscriptions.

Supported Types

Type	Best For
MQTT	Any MQTT broker — local Mosquitto, cloud, or a managed service
InfluxDB	InfluxDB v2 time-series database for metrics and dashboards
Azure IoT Hub	Microsoft Azure cloud integration
AWS IoT Core	Amazon Web Services cloud integration
GCP IoT Core	Google Cloud Platform integration

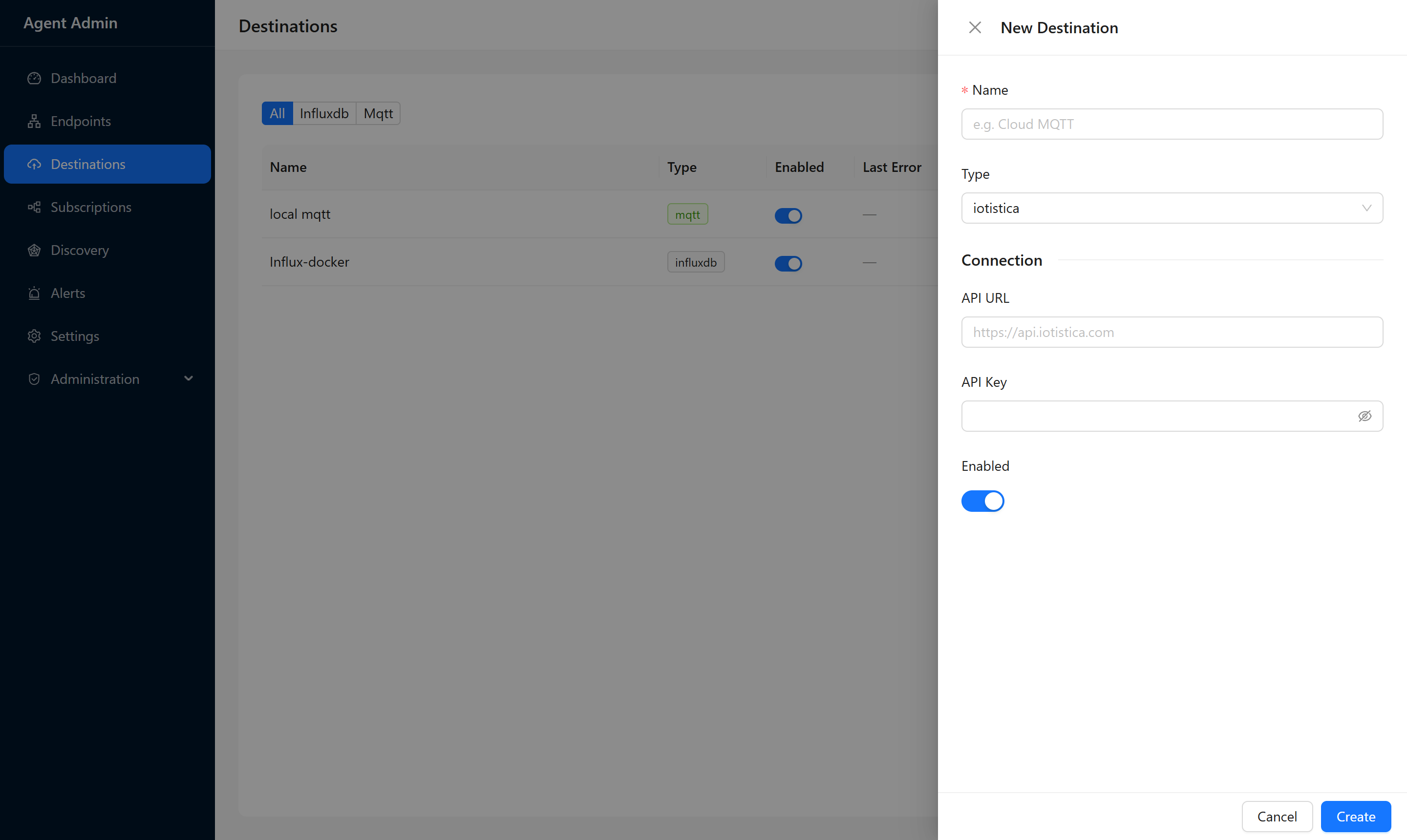

Adding a Destination

1. Go to Destinations in the sidebar and click New Destination.
2. Give it a descriptive name — something like Local Mosquitto or Production InfluxDB.
3. Select the type and fill in the connection settings.
4. Click Save.

The destination appears in the list. It will connect when a subscription starts routing data to it.

Configuration by Type

MQTT

Field	Description
Host	Broker hostname or IP address
Port	Default 1883 (or 8883 for TLS)
Client ID	Unique ID for this agent on the broker. Leave blank to auto-generate.
Username	Leave empty if the broker has no authentication
Password	Broker password
TLS	Toggle on for encrypted connections

tip

If you're sending data to a local Mosquitto broker on the same machine, use 127.0.0.1 as the host. Make sure the agent's MQTT client ID is different from any other clients connecting to the same broker.

InfluxDB

Field	Description
URL	InfluxDB base URL, e.g. http://192.168.1.100:8086
Token	API token from InfluxDB (Data → API Tokens)
Organization	Your InfluxDB organization name
Bucket	Target bucket where data will be written
Measurement	Default measurement name (can be overridden per subscription)

When subscribing endpoint data to InfluxDB, use the tags payload format. This maps each reading's name to an InfluxDB field and uses the device name as a tag — which is what you want for time-series queries.

Azure IoT Hub

Paste the device connection string from your Azure IoT Hub. You can find it in the Azure portal under IoT Hub → Devices → [your device] → Primary Connection String.

AWS IoT Core

You'll need three files from the AWS IoT console (downloaded when you register a device):

• Device certificate (.pem.crt)
• Private key (.pem.key)
• Root CA certificate

Paste or upload these in the destination configuration form.

GCP IoT Core

Requires a service account key (JSON) and the full device registry path from Google Cloud Console.

Enabling and Disabling

Toggle the switch in the destination row to enable or disable it without deleting the configuration. When disabled, all subscriptions pointing to that destination stop sending data.

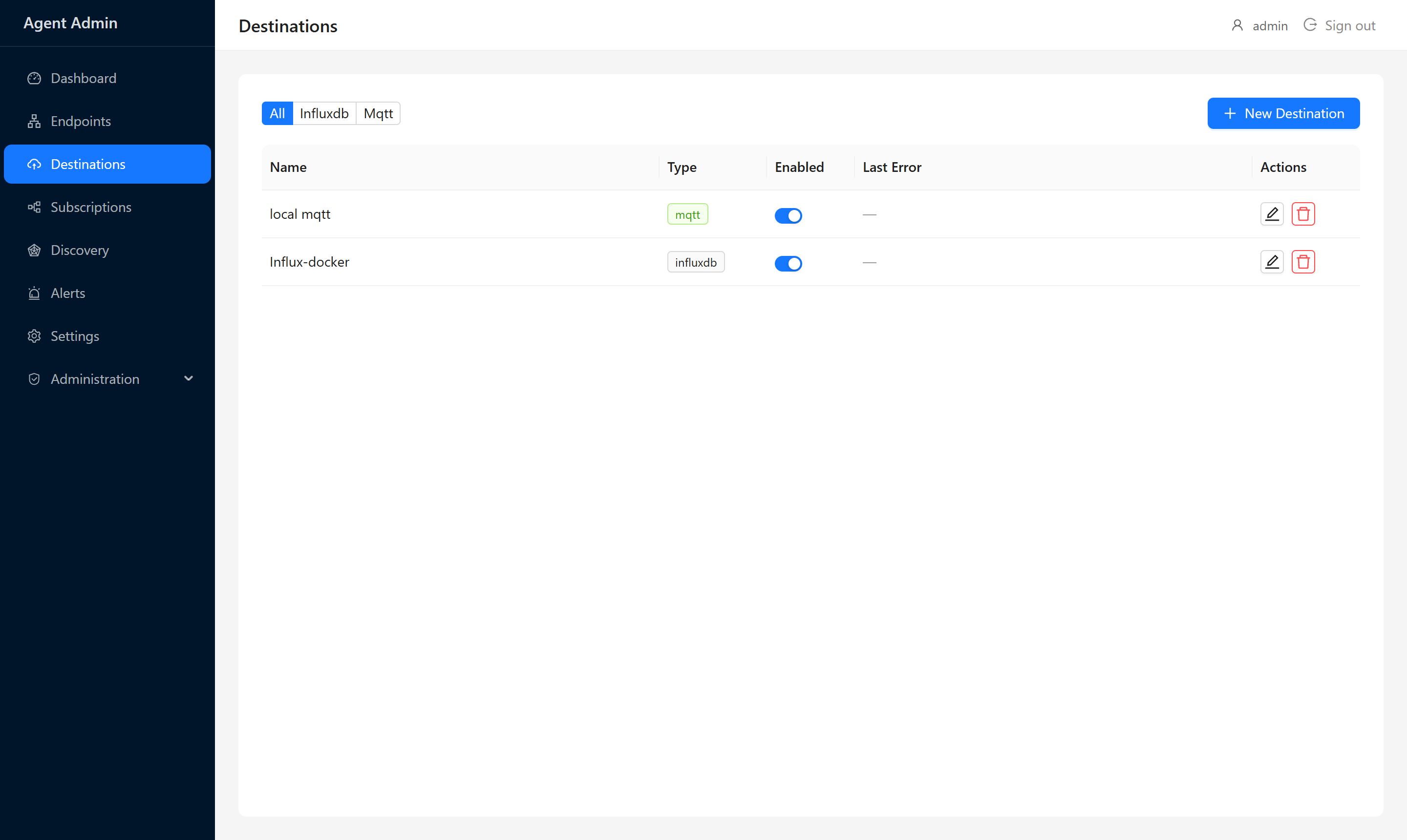

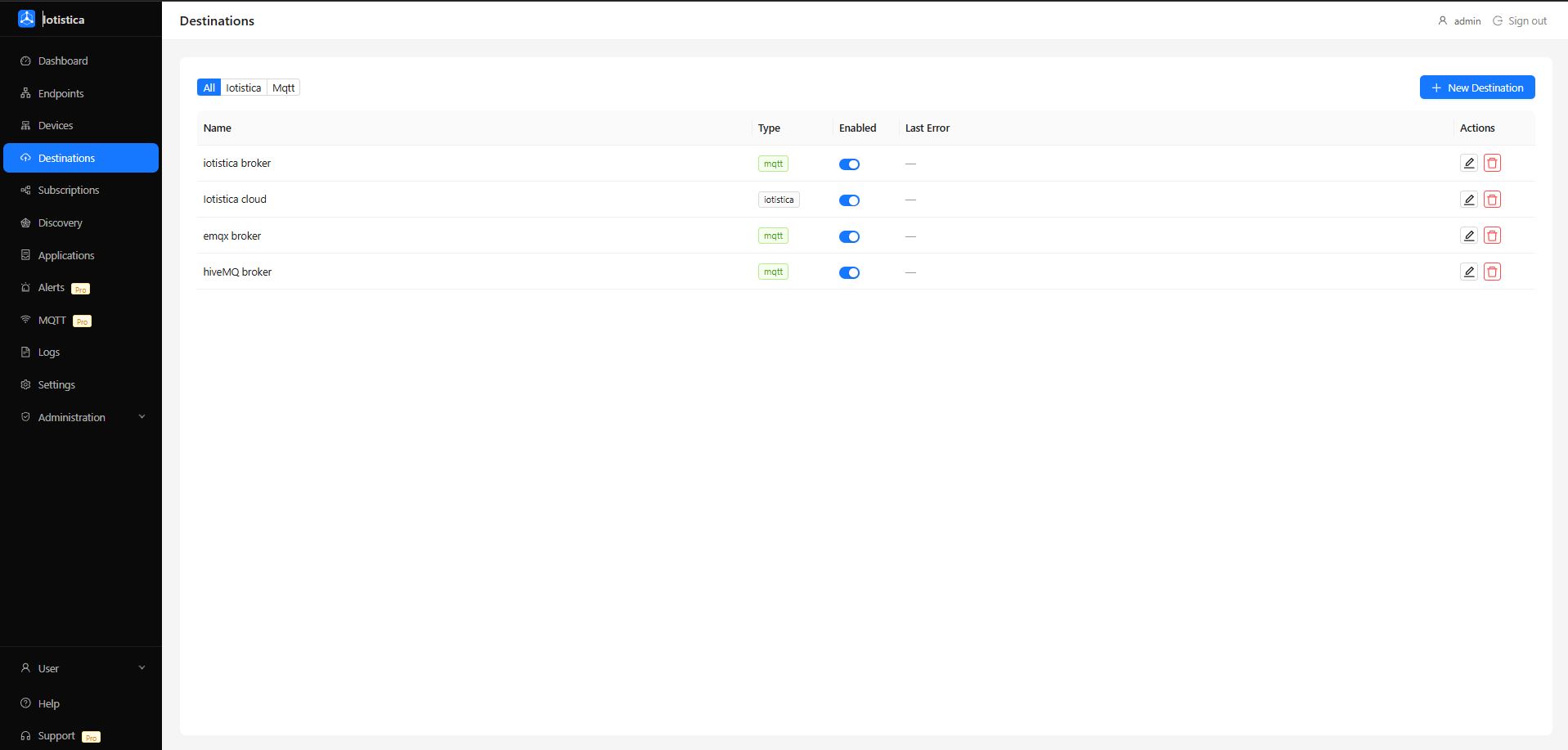

Filtering by Type

Use the type filter buttons at the top of the Destinations page to show only a specific type (MQTT, InfluxDB, etc.). The filter buttons only appear for types you actually have configured.
